OUR PRODUCTS

Air Liquid Reversible Heat Pumps

Air Liquid Reversible Heat Pumps

Our SBS-HP, HBS, HNR, and HFT Series are reversible air-cooled heat pumps engineered for applications that demand high reliability, uninterrupted performance, low operating costs, and reduced CO₂ emissions — even in extreme temperatures as low as -20°C.

SBS-HP Series

The SBS-HP Series includes three models that can be combined to reach the required cooling capacity. This modular design allows power expansion over time and simplifies maintenance and repairs.

HBS Series

The HBS Series features scroll compressors, brazed plate condensers, and brazed plate evaporators. Available as packaged units, they meet all user requirements with capacities ranging from 190 to 720 kW in a single unit.

HNR Series

The HNR Series is specifically designed for wineries and breweries, supporting every stage of the vinification cycle. These packaged units deliver capacities from 34 to 100 kW.

HFT Series

The HFT Series includes scroll compressors, brazed plate condensers, and evaporators built with copper tubes and aluminum-finned cores. These packaged units offer capacities from 34 to 326 kW.

All units can operate with R410A, R454B, or R32 refrigerants and provide an electrical protection rating of IP54.

Each heat pump is fully tested at the Hitema production facility before shipment, ensuring maximum performance, reliability, and continuous operation for customers.

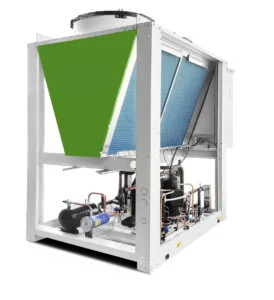

SBS-HP Series Heat Pump

SBS-HP SERIES

MODULAR AIR-TO-WATER REVERSIBLE HEAT PUMP
HEATING CAPACITY RANGE 61.2 kW – 81.4 kW – 105.8 kW

  • Compressors: Scroll with vapour injection
  • Condenser: Brazed plate
  • Evaporator: Air-Cooled with copper tubes & aluminium finned core
  • Valve: Electronic expansion valve
  • Protection Rating: IP54
  • Refrigerant: R410A, R454B or R32
  • Fans: EC Axial

Advantages:

  • Modular design to increase overall unit capacity
  • PCO5+ control with master-slave logic
  • Optimized maintenance — modules operate independently
  • Additional modules can be added after installation
  • Special condensers designed for heat pump applications
SELECTION SOFTWARE &
CONFIGURATOR

HBS Series Heat Pump

HBS SERIES

AIR-TO-WATER REVERSIBLE HEAT PUMP
HEATING CAPACITY RANGE 211 kW – 750 kW

  • Compressors: Scroll
  • Condenser: Brazed plate
  • Evaporator: Air-Cooled with copper tubes & aluminium finned core
  • Valve: Electronic expansion valve
  • Protection Rating: IP54
  • Refrigerant: R410A, R454B or R32
  • Fans: EC Axial

Advantages:

  • Modular condenser construction for maximum design flexibility
  • Great capacity control with inverter options
  • Advanced control capabilities for different applications
  • PCO5+ control with master/slave functionality
  • Special condensers for heat pump applications
SELECTION SOFTWARE &
CONFIGURATOR

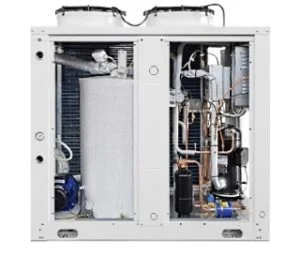

HNR Series Heat Pump

HNR SERIES

AIR-TO-WATER REVERSIBLE HEAT PUMP
COOLING CAPACITY 14 kW – 95 kW
HEATING CAPACITY 15 kW – 104 kW

  • Compressors: Scroll
  • Condenser: Coaxial
  • Evaporator: Air-Cooled with copper tubes & aluminium fins
  • Valve: Electronic expansion valve
  • Protection Rating: IP54
  • Refrigerant: R410A, R454B or R32
  • Fans: EC Axial

Advantages:

  • Multiple compressor design for high reliability
  • Integrated hydraulic module with tank & pump
  • Advanced control options for specific applications
  • Closed cabinet suitable for outdoor installation
  • Special condensers for heat pump applications
SELECTION SOFTWARE &
CONFIGURATOR

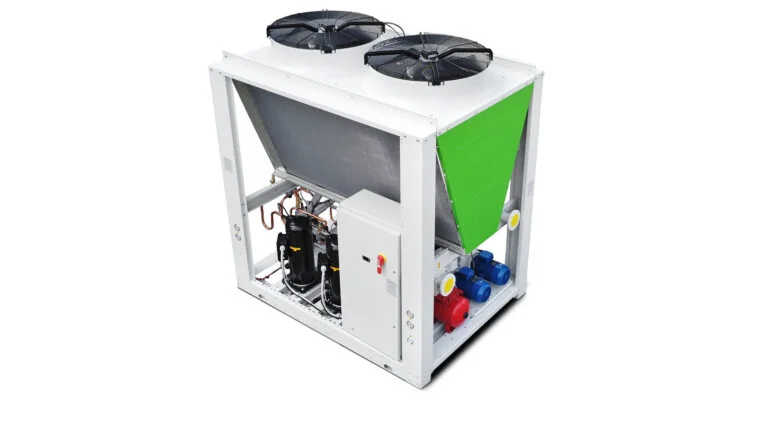

HFT Series Heat Pump

HFT SERIES

AIR-TO-WATER REVERSIBLE HEAT PUMP
HEATING CAPACITY RANGE 16 kW – 345 kW

  • Compressors: Scroll
  • Condenser: Brazed plate
  • Evaporator: Air-Cooled with copper tubes & hydrofilic finned core
  • Valve: Electronic expansion valve
  • Protection Rating: IP54
  • Refrigerant: R410A, R454B or R32
  • Fans: AC Axial (standard), EC Axial (optional)

Advantages:

  • Simple design suitable for air-conditioning applications
  • Option to add pump & tank (inverter pumps available)
  • Closed cabinet for outdoor installation
  • Optional heat recovery
  • Special condensers for heat pump applications
SELECTION SOFTWARE &
CONFIGURATOR
